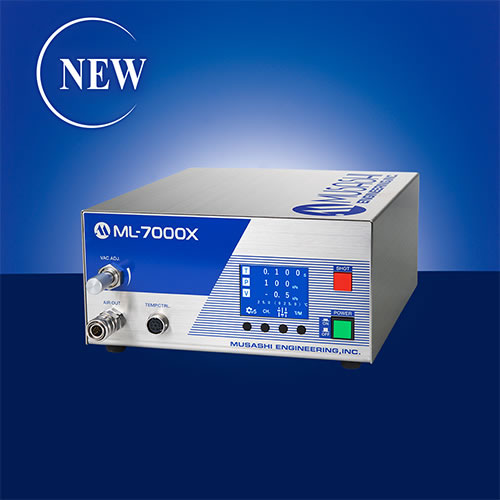

temperature control CTR built-in air pulse system Dispenser ML-7000X
【Industry First】 Built-in temperature control CTR. Fluid temperature adjustment in units of 0.1°C!
Benefits of the built-in temperature control CTR
■Cost reduction
You can purchase it in an integrated manner
■Space saving
Consolidation of space for two units into one unit
■Easy setting
Check the setting of both discharge and heat tone on one side
| Name | High precision digital Dispenser ML-7000X |
| Model | ML-7000X-CTR-V5 | ML-7000X-CTR-V2 |
| Discharge mode | Timed mode/Manual mode |
| Spill pressure setting range | 30 ～ 500 [kPa] | 5 ～ 200 [kPa] |
| Output time setting range | 0.001 ～ 9999.999sec |
| Vacuum pressure setting range | 0.0 ～ -20.0 [kPa] | 0.0 ～ -10.0 [kPa] |
| Main Functions | Operation history, discharge counter, alarm function, residual volume warning, pressure abnormality, solenoid valve alarm, channel registration, channel switching, channel copy, key lock, interval discharge, display language switching, manual/timed mode switching, stopwatch, auto-increment function, auto-slope function, auto-tuning |
| Number of channels | 100CH |
Air Pulse Method
JET Method
