Musashi Dispenser Digital control spray controller SPRAY MASTER ME-5000SP
Centrally manage dispensing conditions to achieve uniform spray musashi dispensing!
Digital control spray controller
SPRAY MASTER ME-5000SP・We improved pressure stability and solved fluctuations in dispensing quantity.
・By setting intervals, we added time between blow pressurization and drive, thus preventing liquid from dripping.
・We achieved superior operability and reproducibility through digital control.
・Dispensing conditions can be centrally managed by the controller.
・Dispensing can be monitored through improved external interface, showing the power of the device's equipment.
| Model | ME-5000SP |
|---|
| Discharge pressure setting | Electro/pneumatic method |
|---|
| Discharge pressure adjustable range | For feeding pressurized fluid | 0.005 - 0.700MPa (Precision regulator) |
|---|
| For blowing | 0.005 - 0.700MPa (Precision regulator) |
|---|
| For valve drive | 0.050 - 0.700MPa |
|---|
| Discharge time control circuit | Digital timer circuit |
|---|
| Time setting range | Time for valve operation | 0.01 - 99.99sec. |
|---|
| Valve opening interval | 0.000 - 9.999sec. |
|---|
| Valve closing interval | 0.000 - 9.999sec. |
|---|
| Display section | LED digital display |
|---|
| External input and output signal | Input (Signal with or without contact point) | Discharge signal (Can switch between input with and without voltage) |
|---|
| Mode switch signal |
| Output (Output without contact point) | Discharge completion signal |
|---|
| Signal during valve opening |
| Signal during blow opening |
| Mode status signal |
| Power supply ON signal |
| Tank pressure drop signal |
| Valve pressure drop signal |
| Blow pressure drop signal |
| Supply air pressure | Less than 0.80 MPa |
|---|
| Power supply, Power consumption | AC100 - 240V, 50/60 Hz, Approx. 32 W |
|---|
| Exterior dimensions, weight | W340 X D245 X H120.8 mm, approximately 5.8 kg |
|---|
Musashi Dispenser
Musashi Dispenser |Optional products
Air atomizing spray valve system SV-6 series /SVM-6LX
Perform spray coating of thin films for workpieces of all shapes
Perform spray coating of thin films for workpieces of all shapes
Twin-fluid spray valve
SV-6 series /SVM-6LXSV-6series
・Uniform film thickness through the exclusive nozzle.
・Prevents splashing by low-pressure atomization.
・Supports multiple heads.
・Full system line-up
SVM-6LX
・The cylinder's inner surface is coated by needle nozzle.
・Prevents splashing by low-pressure atomization.
・For Compact-size, light weight, it is available in small space.
Example equipment in desktop robot

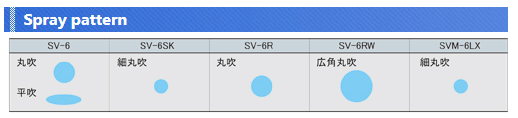

The picture is the twin-spray valve system equipped with the SV-6.Musashi Dispenser ※ Pattern dimensions in distance 50mm are indication levels for maximum pattern dimensions distance 300mm (data which they sprayed water on under conditions of air pressure 0.3MPa, Fluid feed pressure 0.01MPa).
