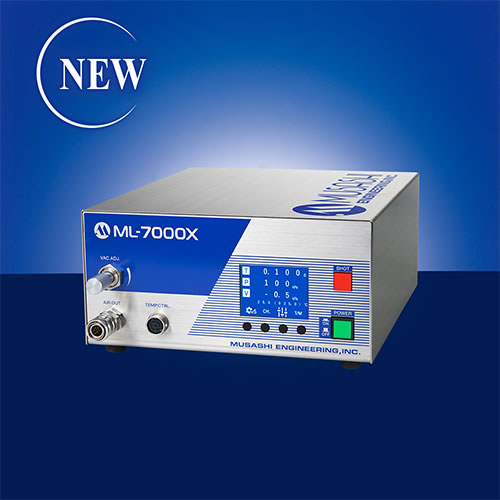

musashi dispenser Air pulse system with built-in temperature control CTR Dispenser ML-7000X

temperature control CTR built-in air pulse system Dispenser ML-7000X

【Industry First】 Built-in temperature control CTR. Fluid temperature adjustment in units of 0.1°C!

Benefits of the built-in temperature control CTR

■Cost reduction

　You can purchase it in an integrated manner

■Space saving

　Consolidation of space for two units into one unit

■Easy setting

　Check the setting of both discharge and heat tone on one side

Name	High precision digital Dispenser ML-7000X
Model	ML-7000X-CTR-V5	ML-7000X-CTR-V2
Discharge mode	Timed mode/Manual mode
Spill pressure setting range	30 ～ 500 [kPa]	5 ～ 200 [kPa]
Output time setting range	0.001 ～ 9999.999sec
Vacuum pressure setting range	0.0 ～ -20.0 [kPa]	0.0 ～ -10.0 [kPa]
Main Functions	Operation history, discharge counter, alarm function, residual volume warning, pressure abnormality, solenoid valve alarm, channel registration, channel switching, channel copy, key lock, interval discharge, display language switching, manual/timed mode switching, stopwatch, auto-increment function, auto-slope function, auto-tuning
Number of channels	100CH
